colour.plotting.plot_RGB_colourspaces_in_chromaticity_diagram_CIE1931#

colour.plotting.plot_RGB_colourspaces_in_chromaticity_diagram_CIE1931(colourspaces: colour.models.rgb.rgb_colourspace.RGB_Colourspace | str | collections.abc.Sequence[colour.models.rgb.rgb_colourspace.RGB_Colourspace | str], cmfs: colour.colorimetry.spectrum.MultiSpectralDistributions | str | collections.abc.Sequence[colour.colorimetry.spectrum.MultiSpectralDistributions | str] = 'CIE 1931 2 Degree Standard Observer', chromaticity_diagram_callable_CIE1931: Callable = plot_chromaticity_diagram_CIE1931, show_whitepoints: bool = True, show_pointer_gamut: bool = False, chromatically_adapt: bool = False, plot_kwargs: Optional[Union[dict, List[dict]]] = None, **kwargs: Any) → Tuple[matplotlib.figure.Figure, matplotlib.axes._axes.Axes][source]#

Plot given RGB colourspaces in the CIE 1931 Chromaticity Diagram.

Parameters

colourspaces (colour.models.rgb.rgb_colourspace.RGB_Colourspace | str | collections.abc.Sequence[colour.models.rgb.rgb_colourspace.RGB_Colourspace | str]) – RGB colourspaces to plot. colourspaces elements can be of any type or form supported by the colour.plotting.common.filter_RGB_colourspaces() definition.
cmfs (colour.colorimetry.spectrum.MultiSpectralDistributions | str | collections.abc.Sequence[colour.colorimetry.spectrum.MultiSpectralDistributions | str]) – Standard observer colour matching functions used for computing the spectral locus boundaries. cmfs can be of any type or form supported by the colour.plotting.common.filter_cmfs() definition.
chromaticity_diagram_callable_CIE1931 (Callable) – Callable responsible for drawing the CIE 1931 Chromaticity Diagram.
show_whitepoints (bool) – Whether to display the RGB colourspaces whitepoints.
show_pointer_gamut (bool) – Whether to display the Pointer’s Gamut.
chromatically_adapt (bool) – Whether to chromatically adapt the RGB colourspaces given in colourspaces to the whitepoint of the default plotting colourspace.
plot_kwargs (Optional[Union[dict, List[dict]]]) – Keyword arguments for the matplotlib.pyplot.plot() definition, used to control the style of the plotted RGB colourspaces. plot_kwargs can be either a single dictionary applied to all the plotted RGB colourspaces with the same settings or a sequence of dictionaries with different settings for each plotted RGB colourspace.
kwargs (Any) – {colour.plotting.artist(), colour.plotting.diagrams.plot_chromaticity_diagram(), colour.plotting.models.plot_pointer_gamut(), colour.plotting.models.plot_RGB_colourspaces_in_chromaticity_diagram(), colour.plotting.render()}, See the documentation of the previously listed definitions.

Returns

Current figure and axes.

Return type

tuple

Examples

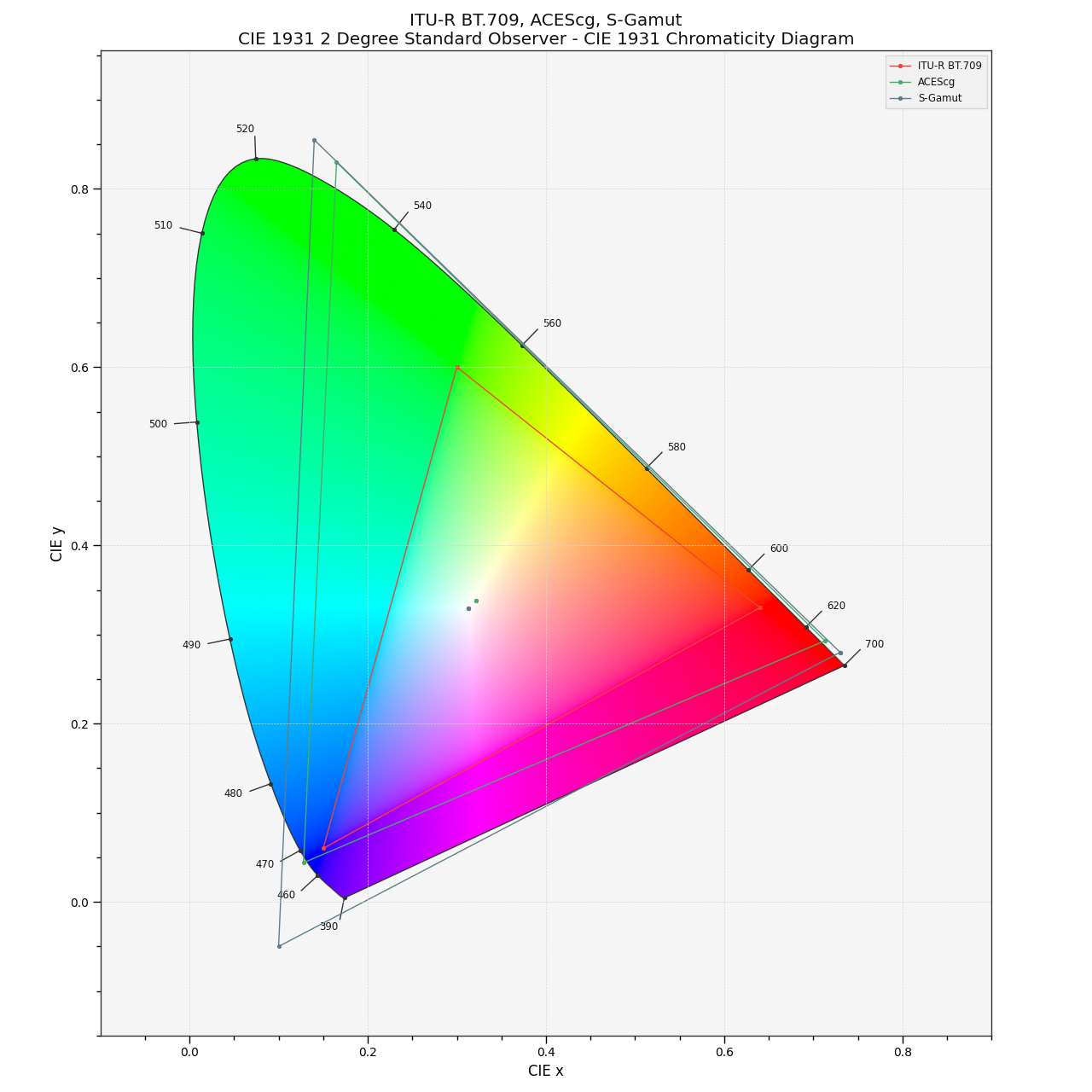

>>> plot_RGB_colourspaces_in_chromaticity_diagram_CIE1931(
...     ["ITU-R BT.709", "ACEScg", "S-Gamut"]
... )
...
(<Figure size ... with 1 Axes>, <...Axes...>)

plot_RGB_colourspaces_in_chromaticity_diagram_CIE1931
