colour.plotting.plot_multi_luminance_functions

colour.plotting.plot_multi_luminance_functions(functions: Union[Callable, str, collections.abc.Sequence[Union[Callable, str]]], **kwargs: Any) → Tuple[matplotlib.figure.Figure, matplotlib.axes._axes.Axes]

Plot given Luminance functions.

Parameters

• functions (Union[Callable, str, collections.abc.Sequence[Union[Callable, str]]]) – Luminance functions to plot. functions elements can be of any type or form supported by the colour.plotting.common.filter_passthrough() definition.

• kwargs (Any) – {colour.plotting.artist(), colour.plotting.plot_multi_functions(), colour.plotting.render()}, See the documentation of the previously listed definitions.

Returns

Current figure and axes.

Return type

tuple

Examples

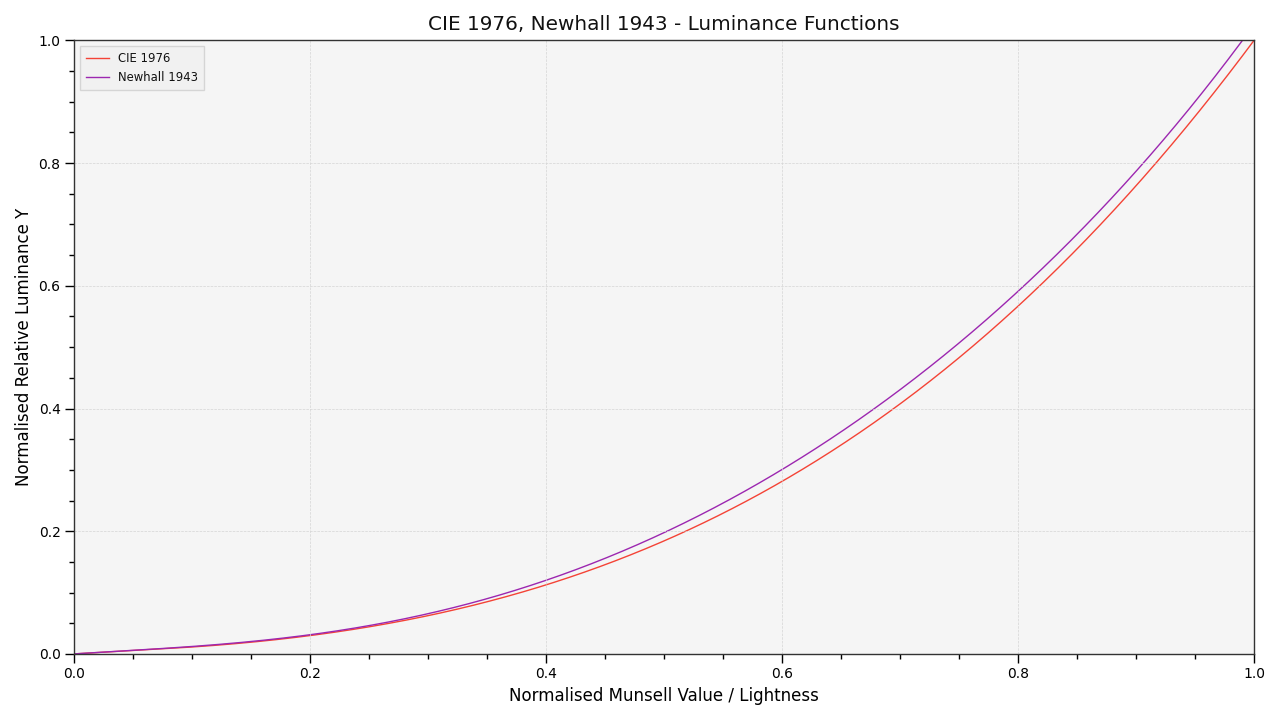

>>> plot_multi_luminance_functions(["CIE 1976", "Newhall 1943"])
...
(<Figure size ... with 1 Axes>, <...Axes...>)
