colour.plotting.plot_single_cmfs

colour.plotting.plot_single_cmfs(cmfs: colour.colorimetry.spectrum.MultiSpectralDistributions | str | collections.abc.Sequence[colour.colorimetry.spectrum.MultiSpectralDistributions | str] = 'CIE 1931 2 Degree Standard Observer', **kwargs: Any) → Tuple[matplotlib.figure.Figure, matplotlib.axes._axes.Axes]

Plot given colour matching functions.

Parameters

• cmfs (colour.colorimetry.spectrum.MultiSpectralDistributions | str | collections.abc.Sequence[colour.colorimetry.spectrum.MultiSpectralDistributions | str]) – Colour matching functions to plot. cmfs can be of any type or form supported by the colour.plotting.common.filter_cmfs() definition.

• kwargs (Any) – {colour.plotting.artist(), colour.plotting.plot_multi_cmfs(), colour.plotting.render()}, See the documentation of the previously listed definitions.

Returns

Current figure and axes.

Return type

tuple

Examples

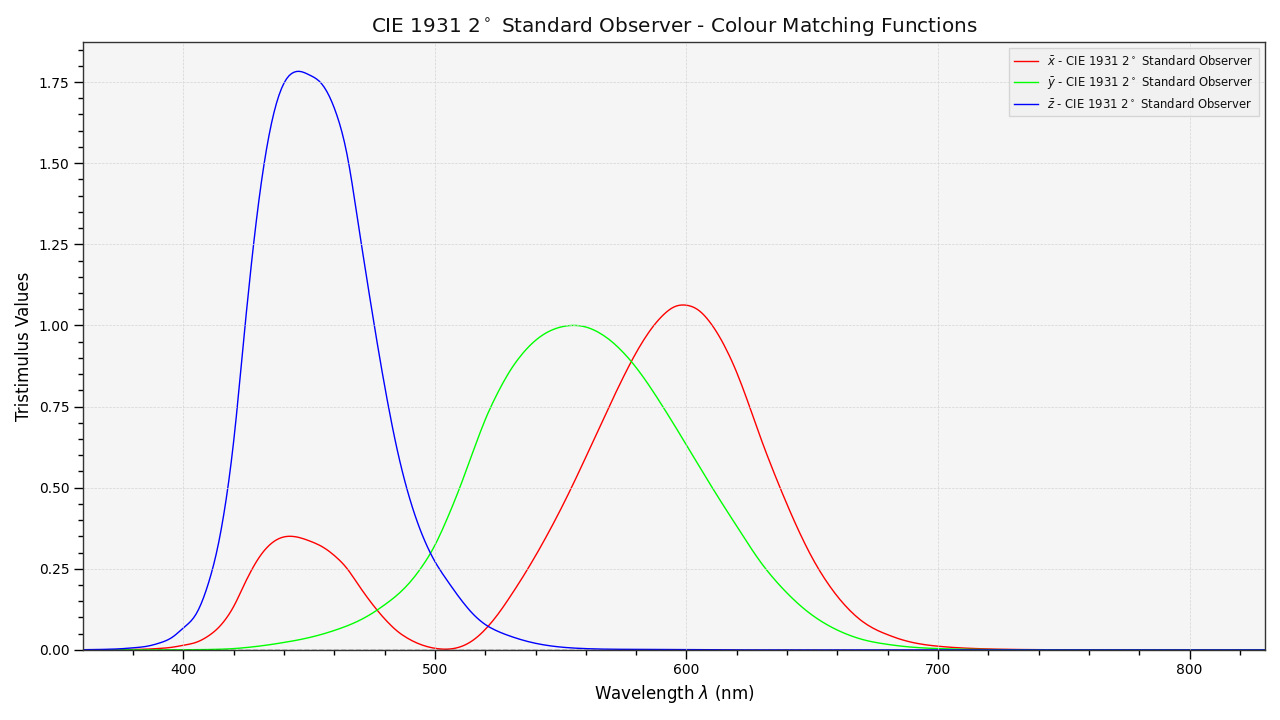

>>> plot_single_cmfs("CIE 1931 2 Degree Standard Observer")
...
(<Figure size ... with 1 Axes>, <...Axes...>)
