colour.plotting.plot_multi_cctfs

colour.plotting.plot_multi_cctfs(cctfs: Union[Callable, str, collections.abc.Sequence[Union[Callable, str]]], cctf_decoding: bool = False, **kwargs: Any) → Tuple[matplotlib.figure.Figure, matplotlib.axes._axes.Axes]

Plot given colour component transfer functions.

Parameters

• cctfs (Union[Callable, str, collections.abc.Sequence[Union[Callable, str]]]) – Colour component transfer function to plot. cctfs elements can be of any type or form supported by the colour.plotting.common.filter_passthrough() definition.

• cctf_decoding (bool) – Plot the decoding colour component transfer function instead.

• kwargs (Any) – {colour.plotting.artist(), colour.plotting.plot_multi_functions(), colour.plotting.render()}, See the documentation of the previously listed definitions.

Returns

Current figure and axes.

Return type

tuple

Examples

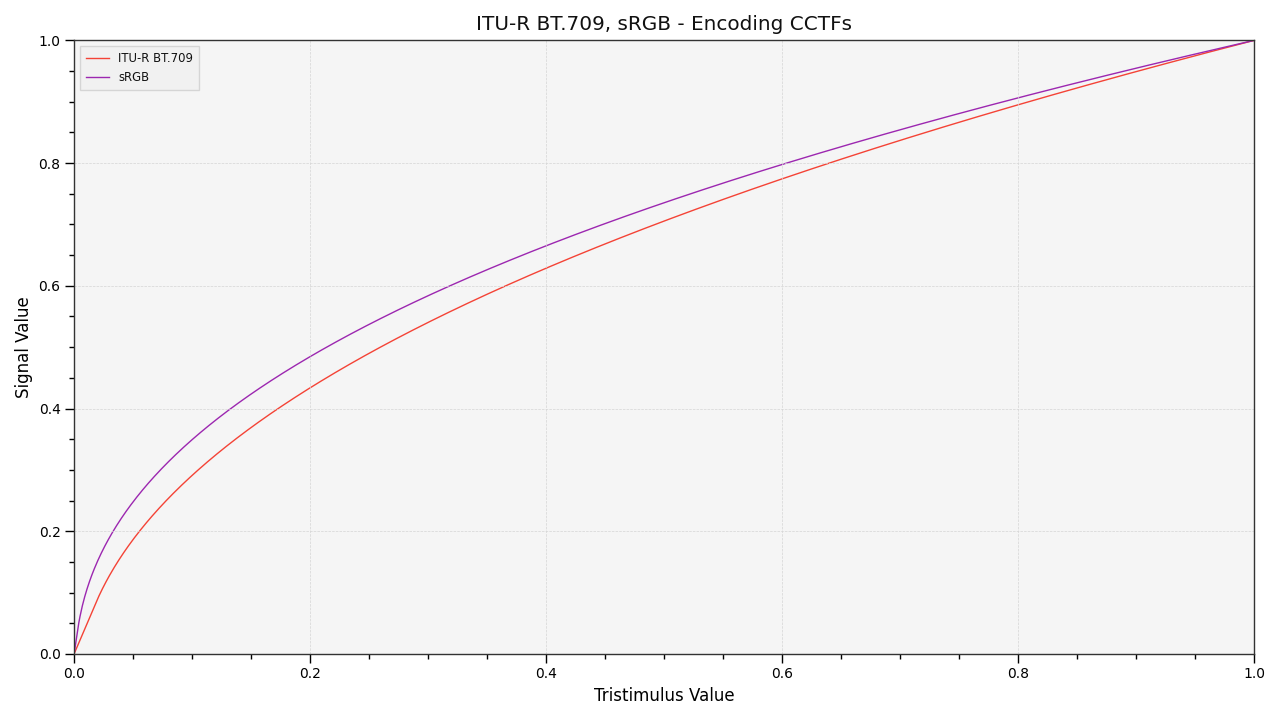

>>> plot_multi_cctfs(["ITU-R BT.709", "sRGB"])
(<Figure size ... with 1 Axes>, <...Axes...>)
