colour.plotting.quality.plot_colour_quality_bars#

colour.plotting.quality.plot_colour_quality_bars(specifications: collections.abc.Sequence[colour.quality.cqs.ColourRendering_Specification_CQS | colour.quality.cri.ColourRendering_Specification_CRI], labels: bool = True, hatching: bool | None = None, hatching_repeat: int = 2, **kwargs: Any) → Tuple[matplotlib.figure.Figure, matplotlib.axes._axes.Axes][source]#

Plot the colour quality data of given illuminants or light sources colour quality specifications.

Parameters

specifications (collections.abc.Sequence[colour.quality.cqs.ColourRendering_Specification_CQS | colour.quality.cri.ColourRendering_Specification_CRI]) – Array of illuminants or light sources colour quality specifications.
labels (bool) – Add labels above bars.
hatching (bool | None) – Use hatching for the bars.
hatching_repeat (int) – Hatching pattern repeat.
kwargs (Any) – {colour.plotting.artist(), colour.plotting.quality.plot_colour_quality_bars(), colour.plotting.render()}, See the documentation of the previously listed definitions.

Returns

Current figure and axes.

Return type

tuple

Examples

>>> from colour import SDS_ILLUMINANTS, SDS_LIGHT_SOURCES, SpectralShape
>>> illuminant = SDS_ILLUMINANTS["FL2"]
>>> light_source = SDS_LIGHT_SOURCES["Kinoton 75P"]
>>> light_source = light_source.copy().align(SpectralShape(360, 830, 1))
>>> cqs_i = colour_quality_scale(illuminant, additional_data=True)
>>> cqs_l = colour_quality_scale(light_source, additional_data=True)

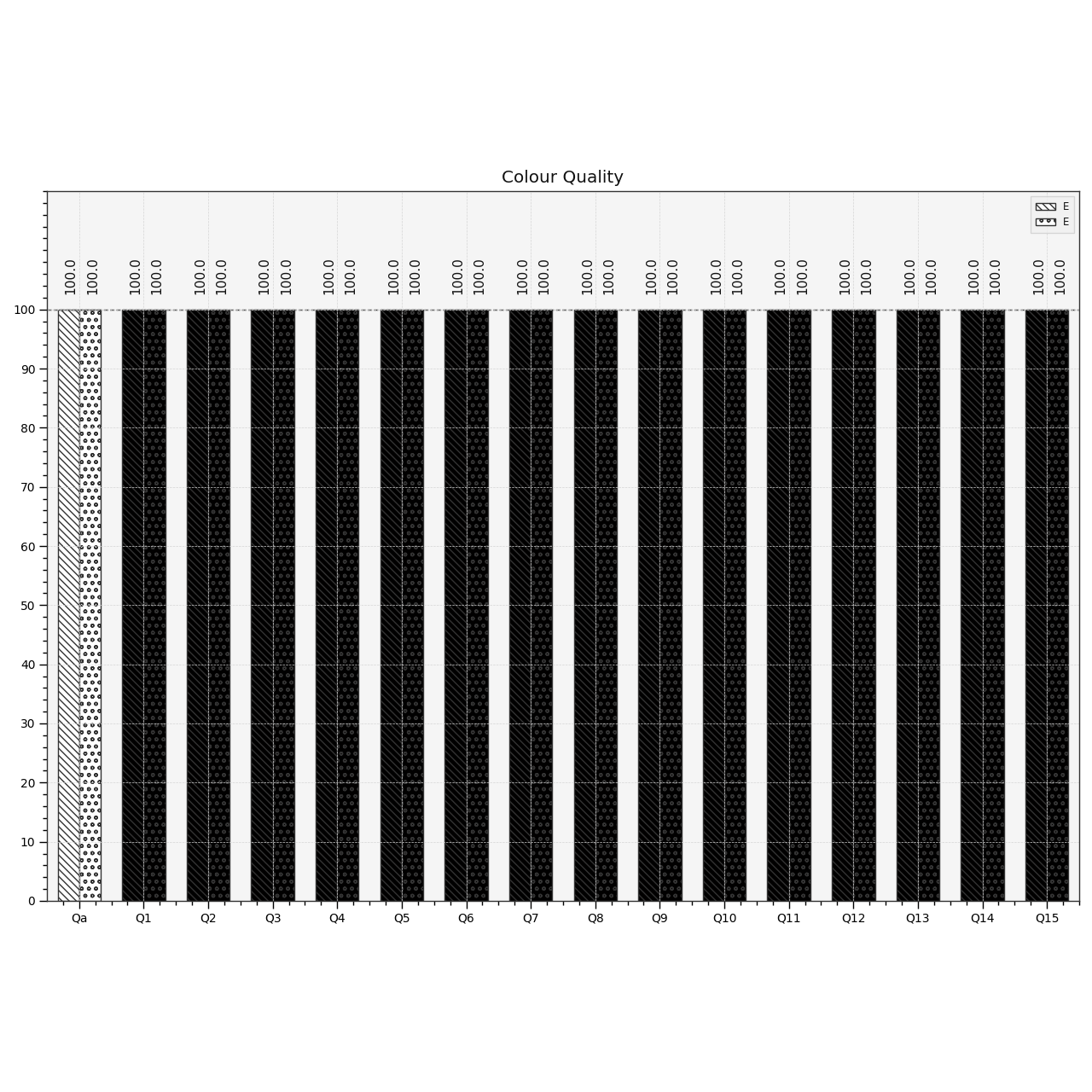

>>> plot_colour_quality_bars([cqs_i, cqs_l])
(<Figure size ... with 1 Axes>, <...Axes...>)
