colour.plotting.plot_multi_cmfs#

colour.plotting.plot_multi_cmfs(cmfs: colour.colorimetry.spectrum.MultiSpectralDistributions | str | collections.abc.Sequence[colour.colorimetry.spectrum.MultiSpectralDistributions | str], **kwargs: Any) → Tuple[matplotlib.figure.Figure, matplotlib.axes._axes.Axes][source]#

Plot given colour matching functions.

Parameters

cmfs (colour.colorimetry.spectrum.MultiSpectralDistributions | str | collections.abc.Sequence[colour.colorimetry.spectrum.MultiSpectralDistributions | str]) – Colour matching functions to plot. cmfs elements can be of any type or form supported by the colour.plotting.common.filter_cmfs() definition.
kwargs (Any) – {colour.plotting.artist(), colour.plotting.render()}, See the documentation of the previously listed definitions.

Returns

Current figure and axes.

Return type

tuple

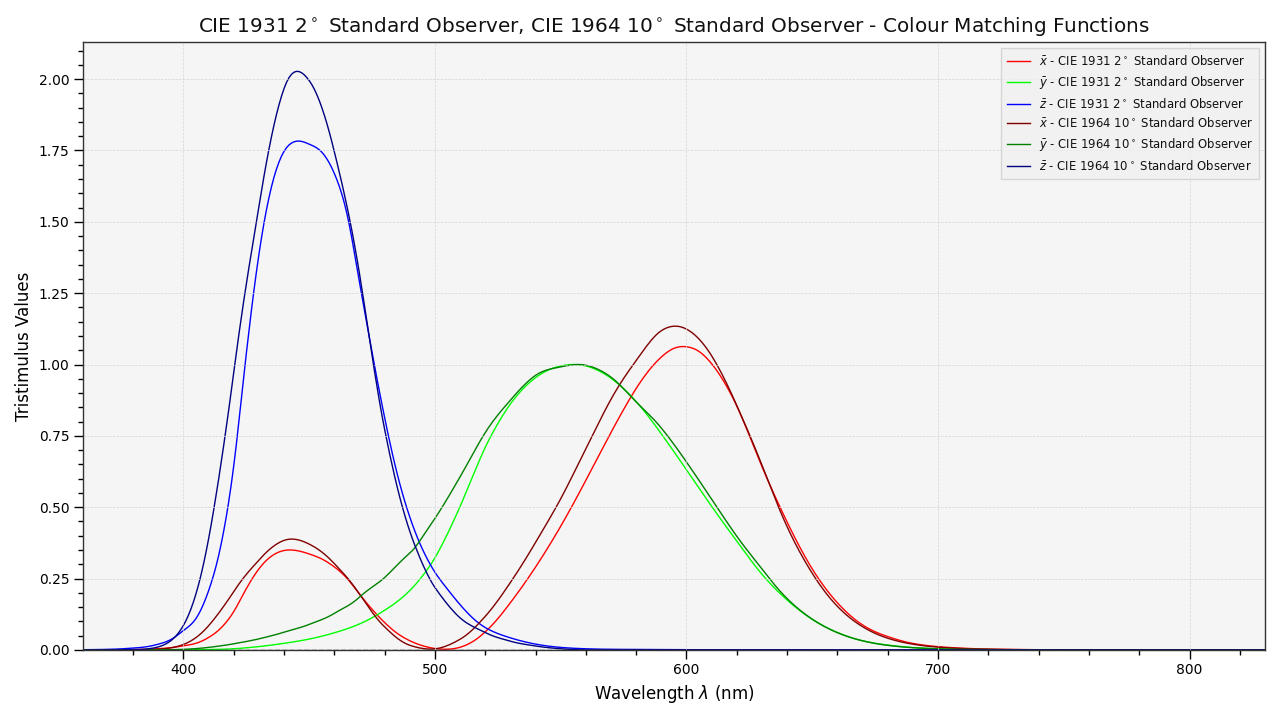

Examples

>>> cmfs = [
...     "CIE 1931 2 Degree Standard Observer",
...     "CIE 1964 10 Degree Standard Observer",
... ]
>>> plot_multi_cmfs(cmfs)
(<Figure size ... with 1 Axes>, <...Axes...>)
