colour.plotting.plot_multi_colour_checkers

colour.plotting.plot_multi_colour_checkers(colour_checkers: colour.characterisation.datasets.colour_checkers.chromaticity_coordinates.ColourChecker | str | collections.abc.Sequence[colour.characterisation.datasets.colour_checkers.chromaticity_coordinates.ColourChecker | str], **kwargs: Any) → Tuple[matplotlib.figure.Figure, matplotlib.axes._axes.Axes]

Plot and compares given colour checkers.

Parameters

• colour_checkers (colour.characterisation.datasets.colour_checkers.chromaticity_coordinates.ColourChecker | str | collections.abc.Sequence[colour.characterisation.datasets.colour_checkers.chromaticity_coordinates.ColourChecker | str]) – Color checker to plot, count must be less than or equal to 2. colour_checkers elements can be of any type or form supported by the colour.plotting.common.filter_colour_checkers() definition.

• kwargs (Any) – {colour.plotting.artist(), colour.plotting.plot_multi_colour_swatches(), colour.plotting.render()}, See the documentation of the previously listed definitions.

Returns

Current figure and axes.

Return type

tuple

Examples

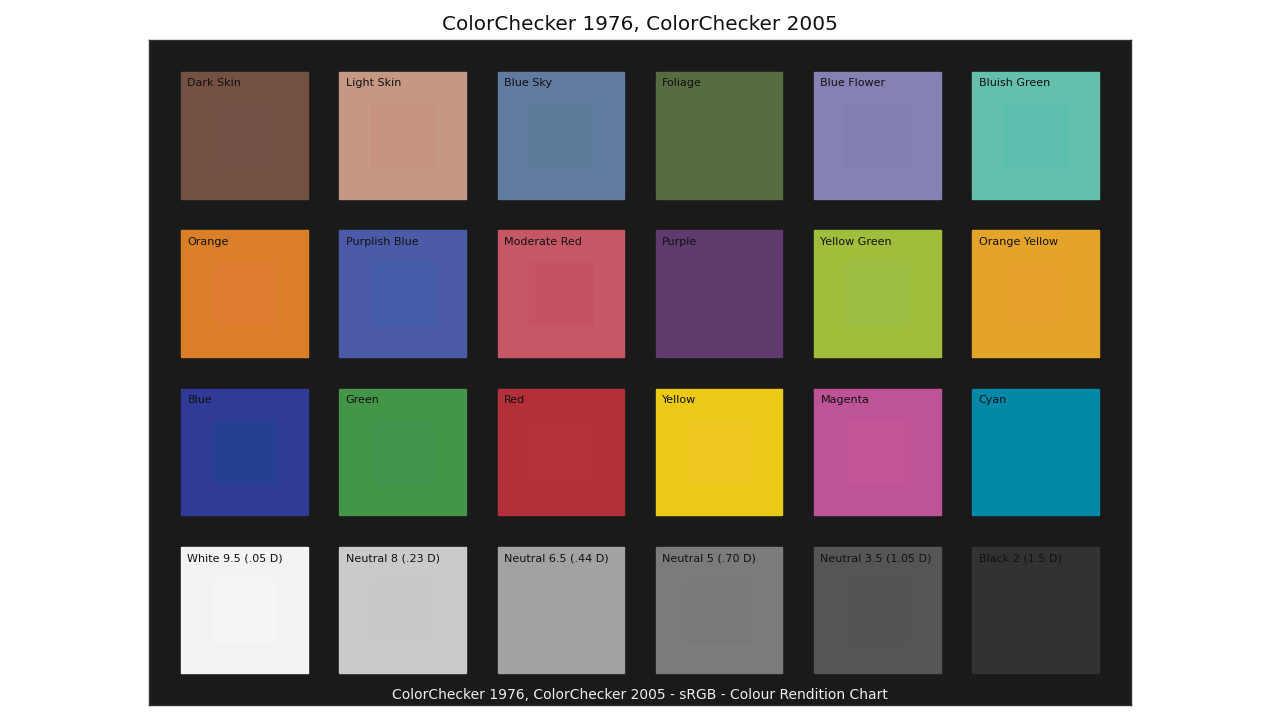

>>> plot_multi_colour_checkers(["ColorChecker 1976", "ColorChecker 2005"])
...
(<Figure size ... with 1 Axes>, <...Axes...>)
