colour.plotting.models.plot_pointer_gamut

colour.plotting.models.plot_pointer_gamut(pointer_gamut_colours: ArrayLike | str | None = None, pointer_gamut_opacity: float = 1, method: Literal['CIE 1931', 'CIE 1960 UCS', 'CIE 1976 UCS'] | str = 'CIE 1931', **kwargs: Any) → Tuple[Figure, Axes]

Plot Pointer’s Gamut using the specified plotting method.

Parameters:

• pointer_gamut_colours (ArrayLike | str | None) – Colours of Pointer’s Gamut.

• pointer_gamut_opacity (float) – Opacity of Pointer’s Gamut.

• method (Literal['CIE 1931', 'CIE 1960 UCS', 'CIE 1976 UCS'] | str) – Plotting method.

• kwargs (Any) – {colour.plotting.artist(), colour.plotting.render()}, See the documentation of the previously listed definitions.

Returns:

Current figure and axes.

Return type:

tuple

Examples

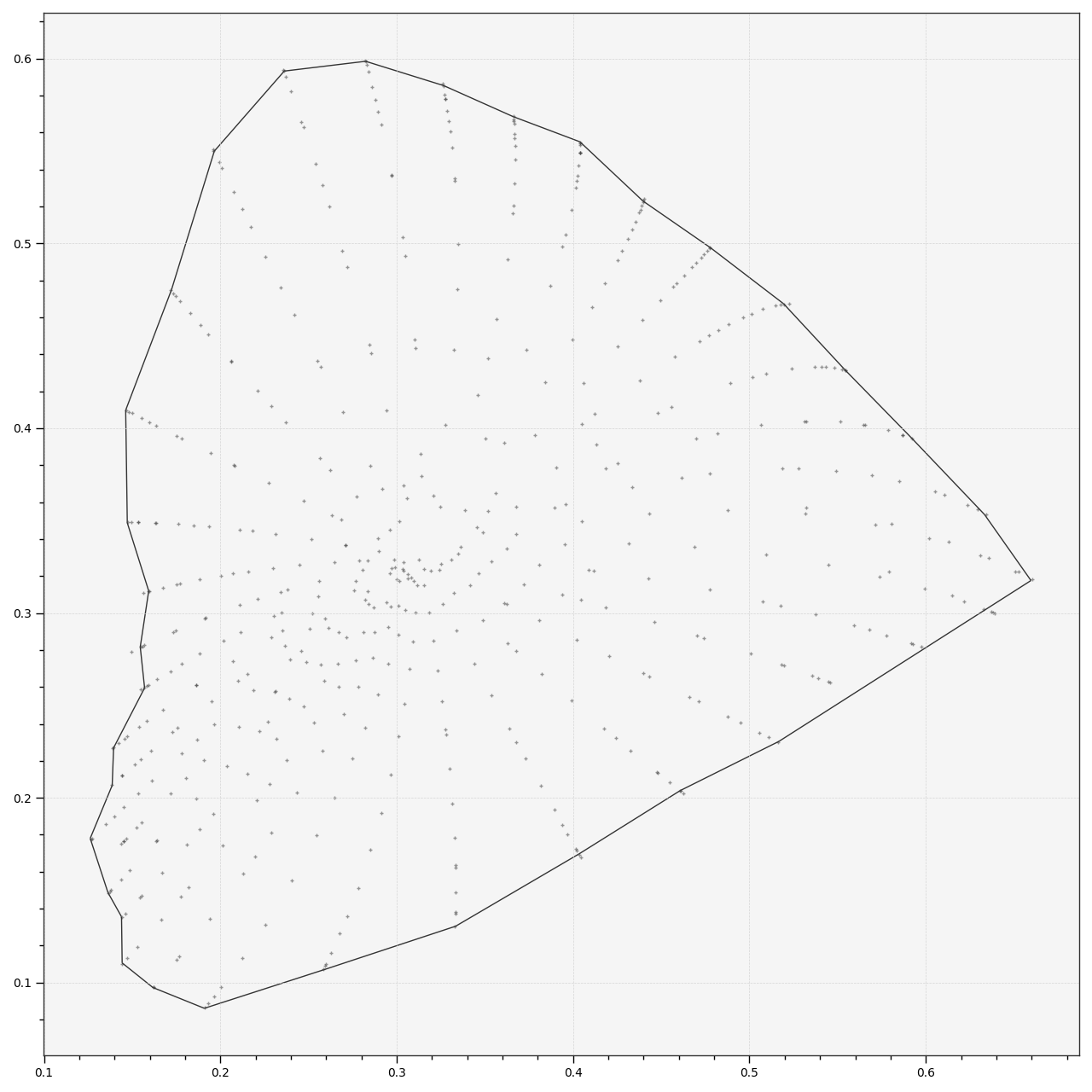

>>> plot_pointer_gamut(pointer_gamut_colours="RGB")
(<Figure size ... with 1 Axes>, <...Axes...>)
