colour.plotting.plot_thin_film_reflectance_map#

colour.plotting.plot_thin_film_reflectance_map(n: ArrayLike, t: ArrayLike | None = None, theta: ArrayLike | None = None, shape: SpectralShape = SPECTRAL_SHAPE_DEFAULT, polarisation: Literal['Average', 'S', 'P'] | str = 'Average', method: Literal['Angle', 'Thickness'] | str = 'Thickness', **kwargs: Any) → Tuple[Figure, Axes][source]#

Plot thin film reflectance as a 2D pseudocolor map.

Creates a 2D visualization showing reflectance as a function of wavelength (x-axis) and either film thickness or incident angle (y-axis).

Parameters:

  • n (ArrayLike) –

    Complete refractive index stack \(n_j\). Shape: (media_count,) or (media_count, wavelengths_count). The array should contain:

    • Single layer: [n_incident, n_film, n_substrate] (length 3)

    • Multi-layer: [n_incident, n_layer_1, …, n_layer_n, n_substrate] (length > 3)

    Supports wavelength-dependent refractive index for dispersion.

  • t (ArrayLike | None) –

    Thickness \(t\) in nanometers. Behavior depends on the method:

    • Thickness mode (single layer): Array of thicknesses or None (default: np.linspace(0, 1000, 250)). Sweeps film thickness across the range.

    • Thickness mode (multi-layer): Array of thicknesses or None. Sweeps all layers simultaneously with the same thickness value. For example, np.linspace(50, 500, 250) sweeps all layers from 50nm to 500nm together.

    • Angle mode (single layer): Scalar thickness (e.g., 300). Fixed thickness while varying angle.

    • Angle mode (multi-layer): Array of layer thicknesses (e.g., [100, 50] for 2 layers). All layers kept at fixed thickness while varying angle.

  • theta (ArrayLike | None) –

    Incident angle \(\theta\) in degrees. Behavior depends on the method:

    • Thickness mode: Scalar angle or None (default: 0°). Fixed angle while varying thickness.

    • Angle mode: Array of angles (e.g., np.linspace(0, 90, 250)). Sweeps angle across the range.

  • shape (SpectralShape) – Spectral shape for wavelength sampling.

  • polarisation (Literal['Average', 'S', 'P'] | str) – Polarisation to plot: ‘S’, ‘P’, or ‘Average’ (case-insensitive). Default is ‘Average’ (mean of s and p polarisations for unpolarized light).

  • method (Literal['Angle', 'Thickness'] | str) –

    Plotting method, one of (case-insensitive):

    • ’Thickness’: Plot reflectance vs wavelength and thickness (y-axis)

    • ’Angle’: Plot reflectance vs wavelength and angle (y-axis)

  • kwargs (Any) – {colour.plotting.artist(), colour.plotting.render()}, See the documentation of the previously listed definitions.

Returns:

Current figure and axes.

Return type:

tuple

Examples

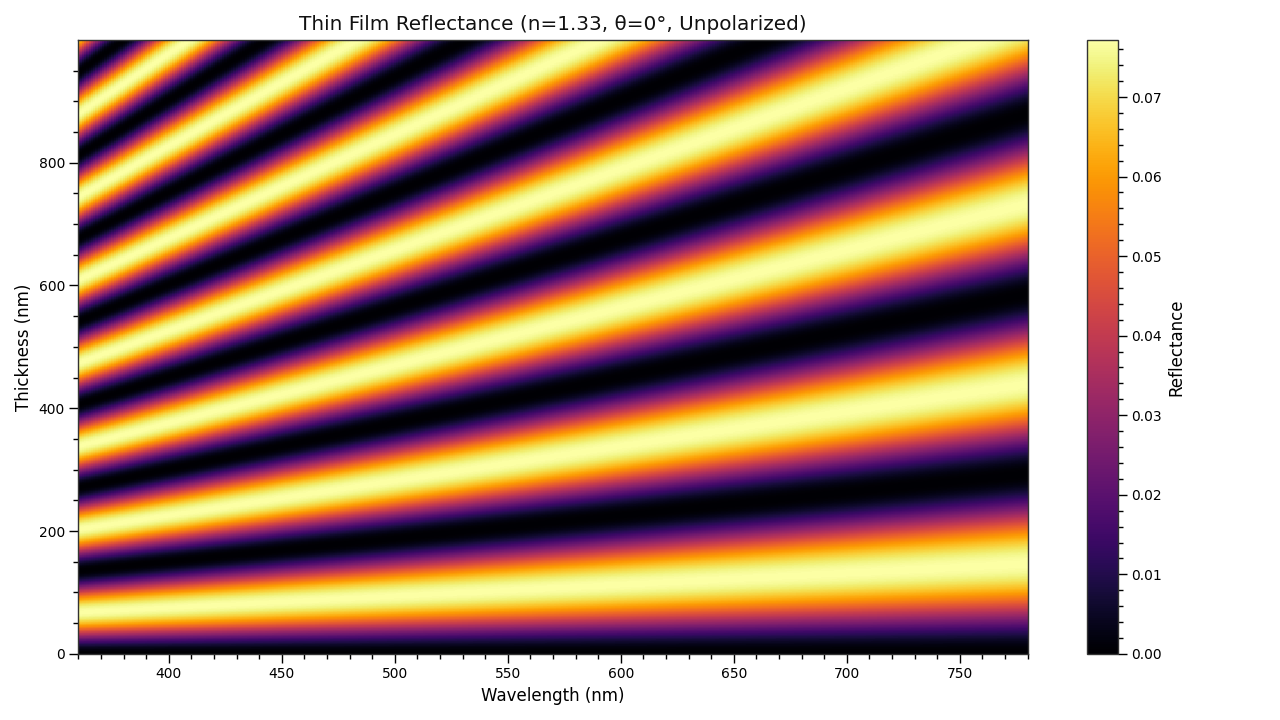

>>> plot_thin_film_reflectance_map(
...     [1.0, 1.33, 1.0], method="Thickness"
... )
(<Figure size ... with 2 Axes>, <...Axes...>)
plot_thin_film_reflectance_map
