colour.plotting.plot_single_cmfs#

colour.plotting.plot_single_cmfs(cmfs: MultiSpectralDistributions | str | Sequence[MultiSpectralDistributions | str] = 'CIE 1931 2 Degree Standard Observer', **kwargs: Any) → Tuple[Figure, Axes][source]#

Plot specified colour matching functions.

Parameters:

cmfs (MultiSpectralDistributions | str | Sequence[MultiSpectralDistributions | str]) – Colour matching functions to plot. cmfs can be of any type or form supported by the colour.plotting.common.filter_cmfs() definition.
kwargs (Any) – {colour.plotting.artist(), colour.plotting.plot_multi_cmfs(), colour.plotting.render()}, See the documentation of the previously listed definitions.

Returns:

Current figure and axes.

Return type:

tuple

Examples

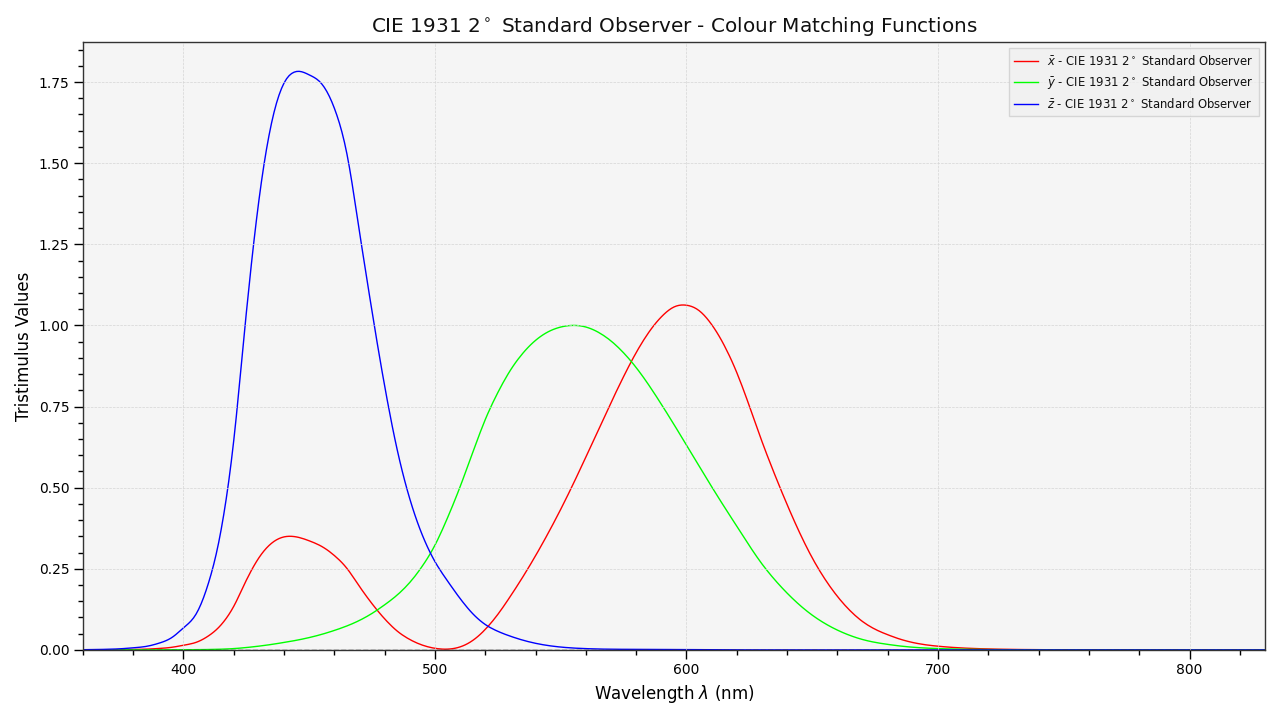

>>> plot_single_cmfs("CIE 1931 2 Degree Standard Observer")
...
(<Figure size ... with 1 Axes>, <...Axes...>)
